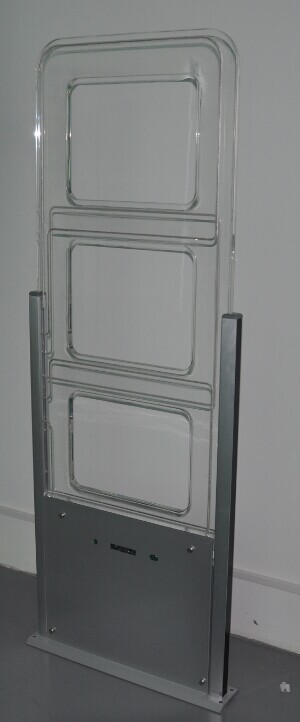

XLD-RFID02 is a high performance RFID Library Anti-theft Gate which can read tags in three-dimensional orientation complying with ISO/IEC 15693,ISO18000-3 protocol.
XLD-RFID02 RFID anti-theft gate supports AFI, EAS, AFI+EAS, UID detection model, with light and alarm double warning, supports offline application and muti gate antenna using, automatically people counting and displaying the number of check-in/ check-out . Mainly used in smart library, achieve etc fields. The gate width can reach up to 130cm.
Mainly Features:
·Three-dimensional orientation detecting, tags can be detected in all directions.
·gate width from 90 to 130cm(relative to tags quality and size).
·Support multiple -channel application
·EAS and AFI optional detection
·Support EAS+AFI mixed detection
·Support Tag UID detection
.People counter with the in/out people numbers
·Support relay output control
·Support firmware upgrade
.Support OEM service
Technical Parameters | Operating Frequency | 13.56MHz±7KHz |
Protocol | ISO / IEC15693, ISO18000-3 |
Aisle Width | Maximum: 90cm(relative to the tags quality and size) |
Infrared Sensors | 2 pairs |
Communication Interface | standard RS232 / Ethernet, RJ45(optional) |
Output Impedance | 50Ω |
Tag overlapping area | Max:25%( adjacent tags) |
Cascade NO. | Max: 99pcs |
Rated Power | <25W |
Operating Voltage | 220VAC 50/60Hz |
Environmental
Parameters | Operating Temperature | -10℃~55℃ |
Storage Temperature | - 20℃~70℃ |
Humidity Range | 20%~90% RH |
Physical Parameter | Dimensions | Antenna body size | Pedestal size |
L*W*Thickness(mm): 1663*630*46mm | L*W(mm): 697*120 |
Weight/pc | 30Kg |
Color | Transparent |
Housing Material | Acrylic |
